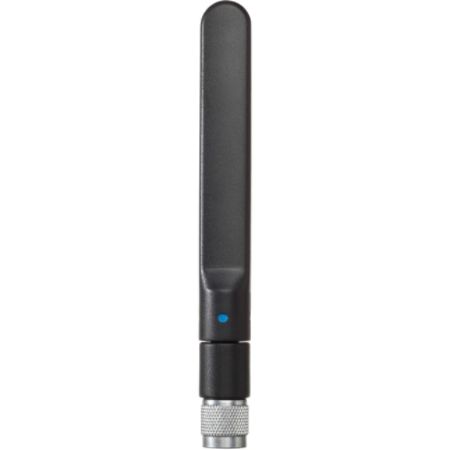

Cisco Aironet Omnidirectional Antenna Item # 965877
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
965877
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Cisco Aironet 3.5-dBi Articulated Dipole Antenna operates in the 5-GHz frequency band and is designed for use with Cisco Aironet 5-GHz radio products using a reverse-polarity Neil Councilman connector (RP-TNC).The antenna has an articulated base that can be rotated 360 degrees at the connection point and from 0 to 90 degrees at its knuckle with detents at 45 and 90 degrees.
Product Details
| Item # | 965877 |
| Manufacturer # | F14558 |
| Maximum Antenna Range | 675 ft |
| height | 5.3 in |
| Vertical Beamwidth | 40° |
| Additional Information | All range estimations are based on an external antenna associating with an integrated Intel Centrino client adapter under ideal conditions. The distances referenced here are approximations and should be used for estimation purposes only.Application: Indoor omnidirectional coverage |
| Directivity | Omni-directional |
| width | 0.6 in |
| Product Line | Aironet |
| Product Name | Aironet Omnidirectional Antenna |
| Antenna Gain | 4 dB |
| manufacturer | Cisco Systems, Inc |
| Compatibility | Cisco Aironet 1200 Series Access Points |
| Application/Usage | Wireless Data Network |
| Polarization | Linear |
| weight | 1 oz |
| brand name | Cisco |
| frequency | 5.15 GHz to 5.85 GHz |
| Frequency Band Type | SHF |
| Application | Indoor |
| connector type | RP-TNC |
| warranty length | 1-year limited |
| model name | AIR-ANT5135D-R |
| Horizontal Beamwidth | 360° |
| Frequency Range | 5 GHz |
| Show More ▾ |
